Accessories

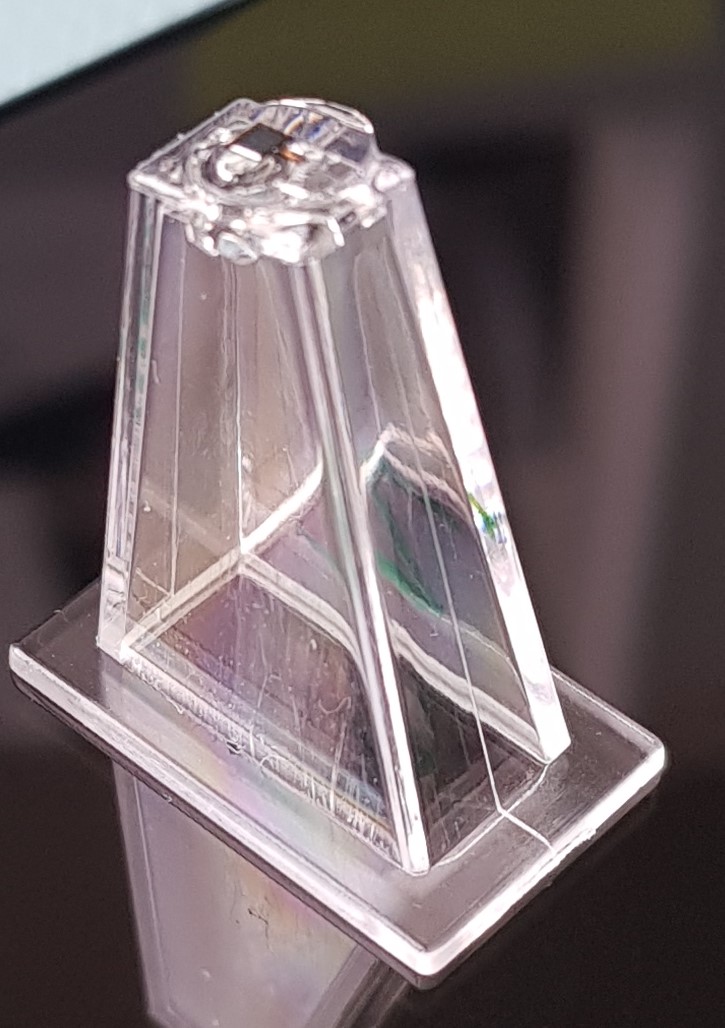

Reference consumable

for XY calibration or simple as protection for transporting or storing the FluidFM head

Reference FluidFM Omnium Consumable

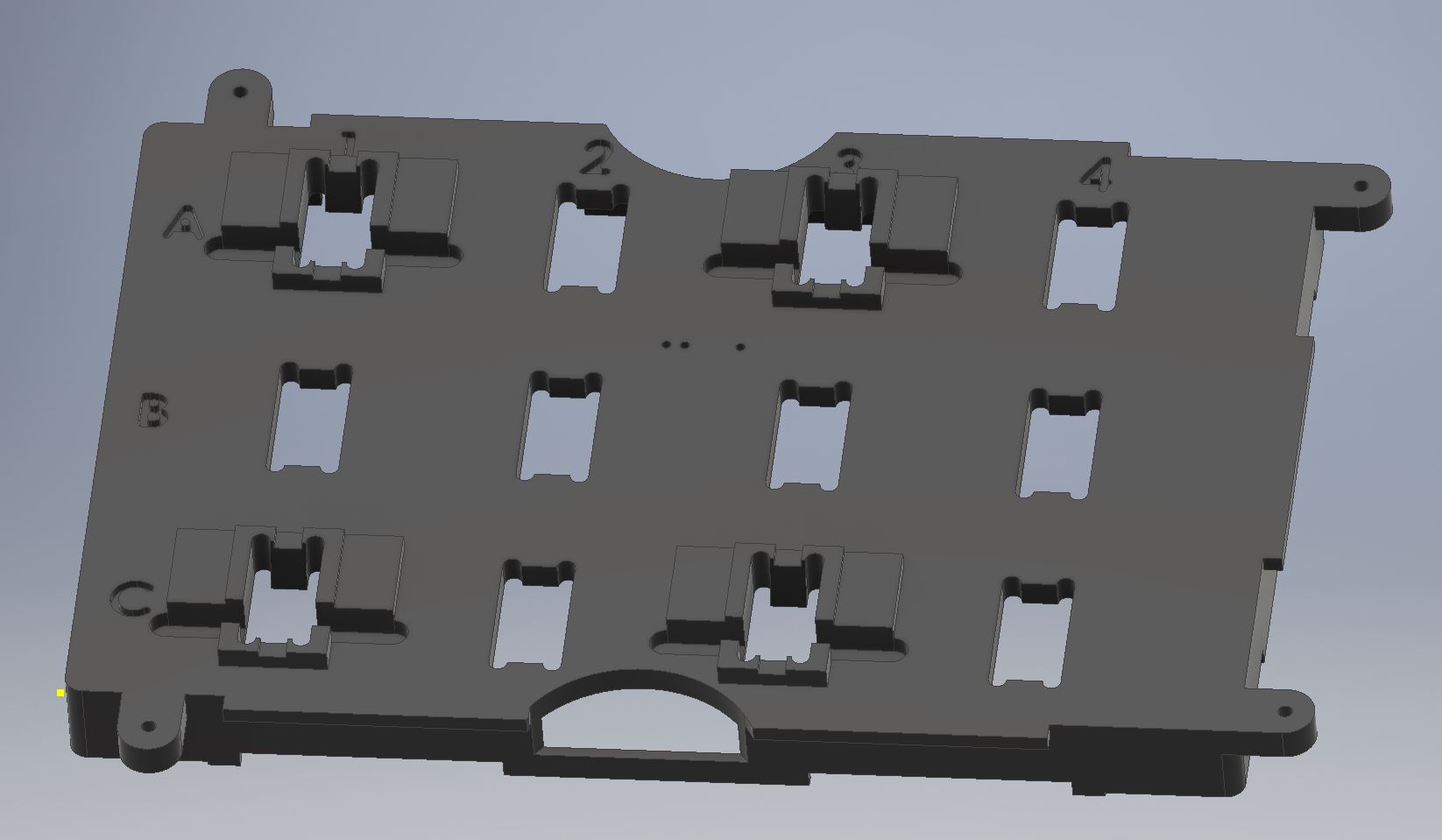

Consumable holder

for FluidFM Omnium Consumables

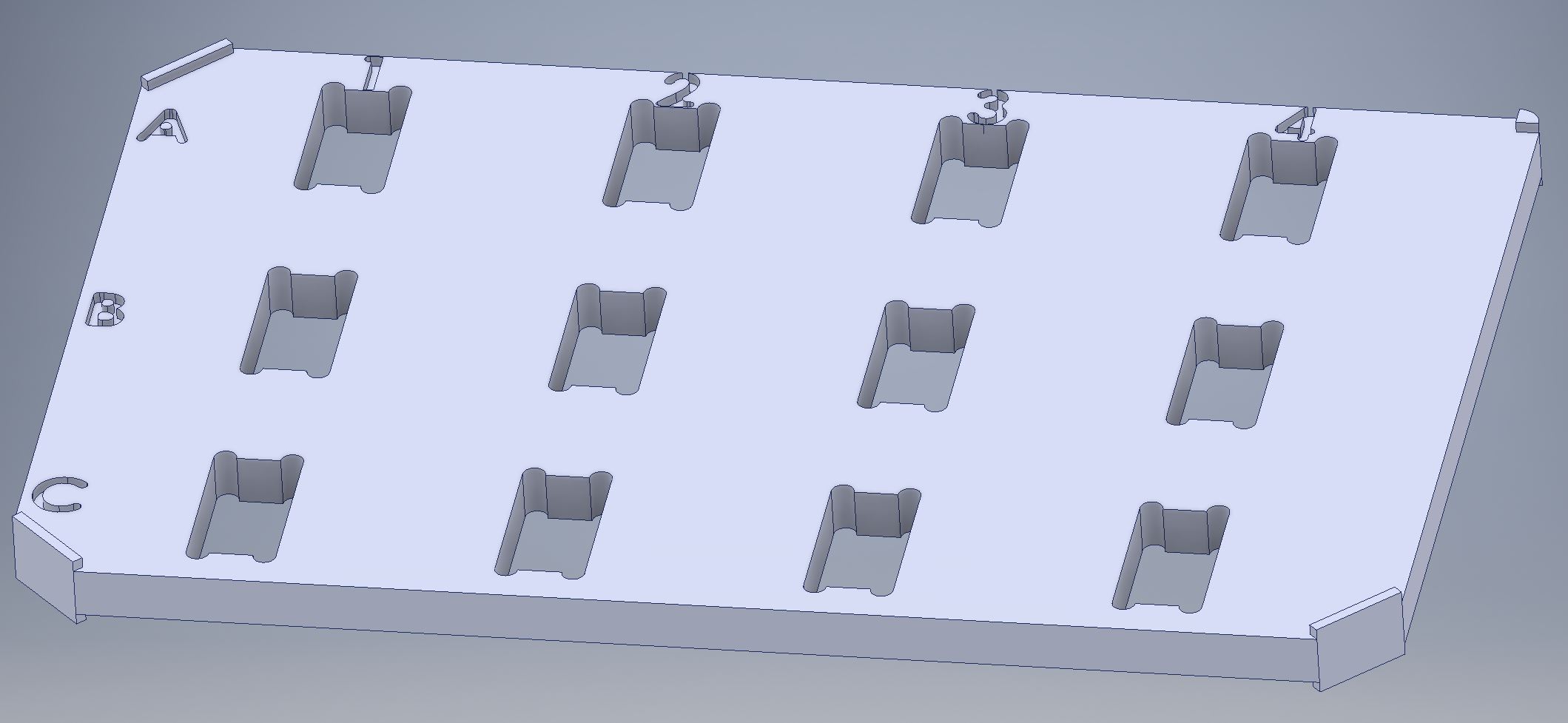

Consumable holder rack for storage

for FluidFM Omnium Consumables

Sample holders

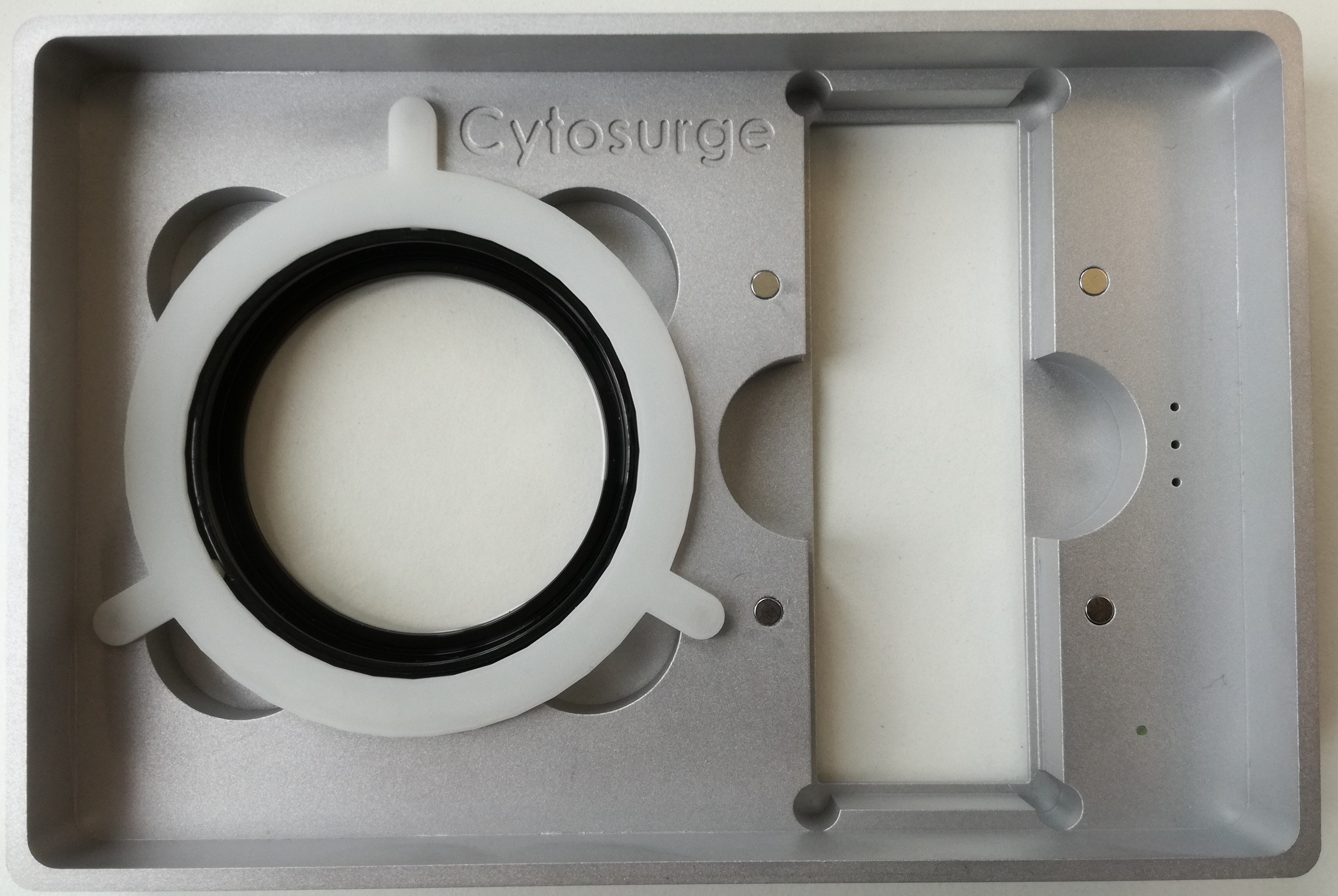

Sampleholder (50mm) for WillCo Well and Microscopy slides (1” x 3”) or (<26.5mm x <76.5mm)

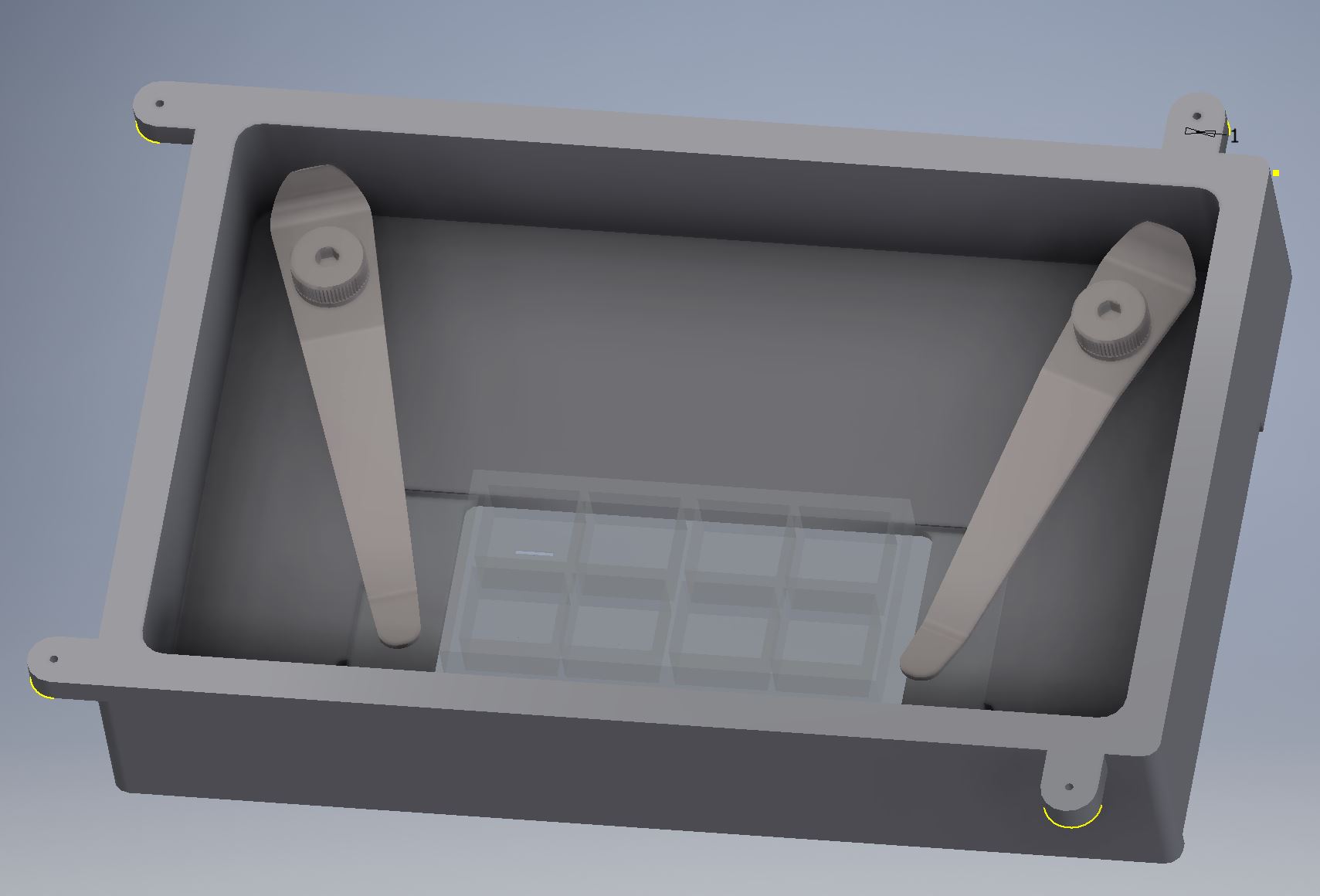

Sampleholder for 1 u-Slide 8 Well Grid-500 from ibiTreat V2.0

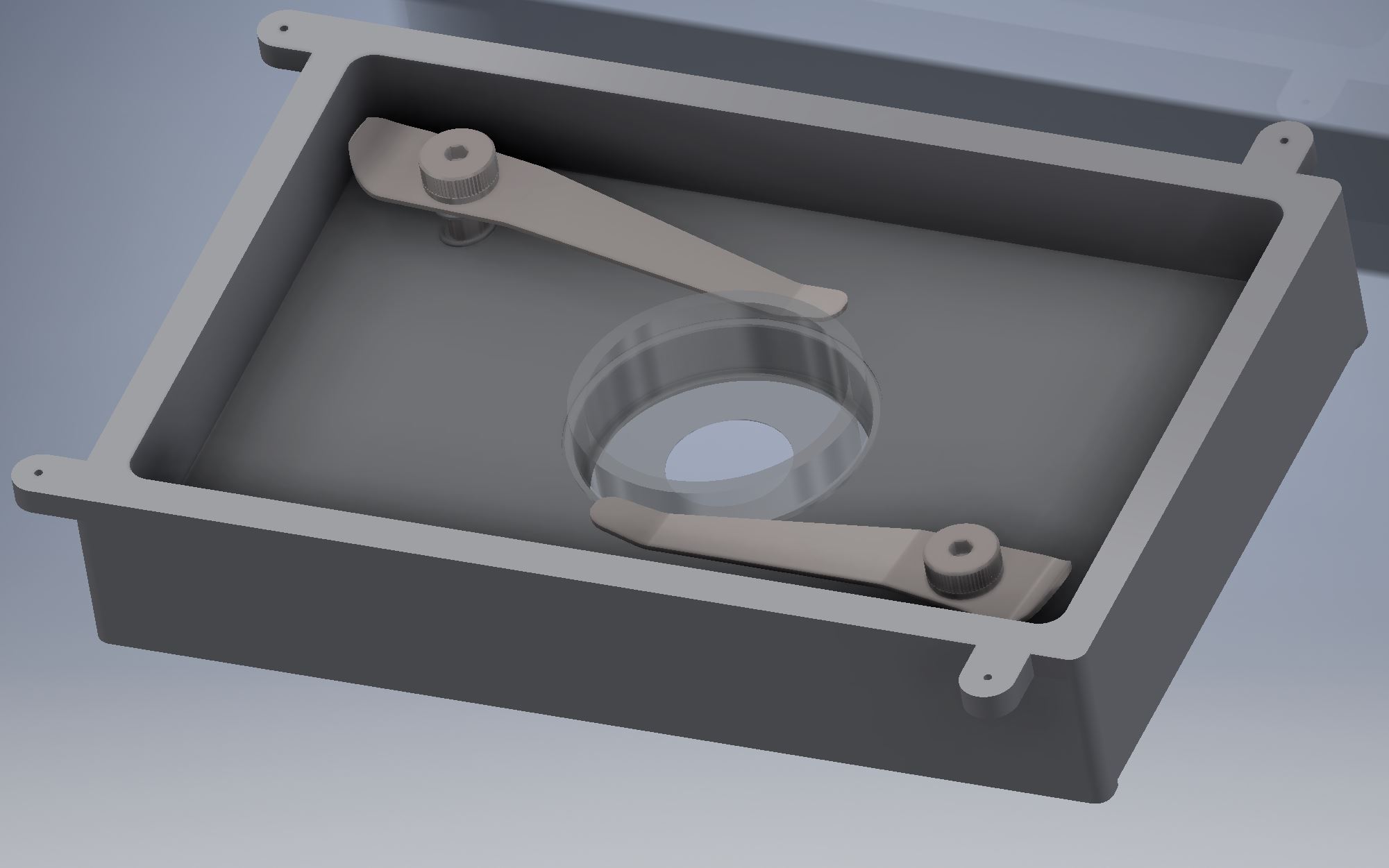

Sampleholder for u-Dish 35mm high (Grid-50 Glass Bottom) from ibiTreat V1.0

Sample holder DIY

Hardware Design Guide for FluidFM Omnium Sample Holders. Before using hardware please enter necessary dimensions in the plate editor plate editor.

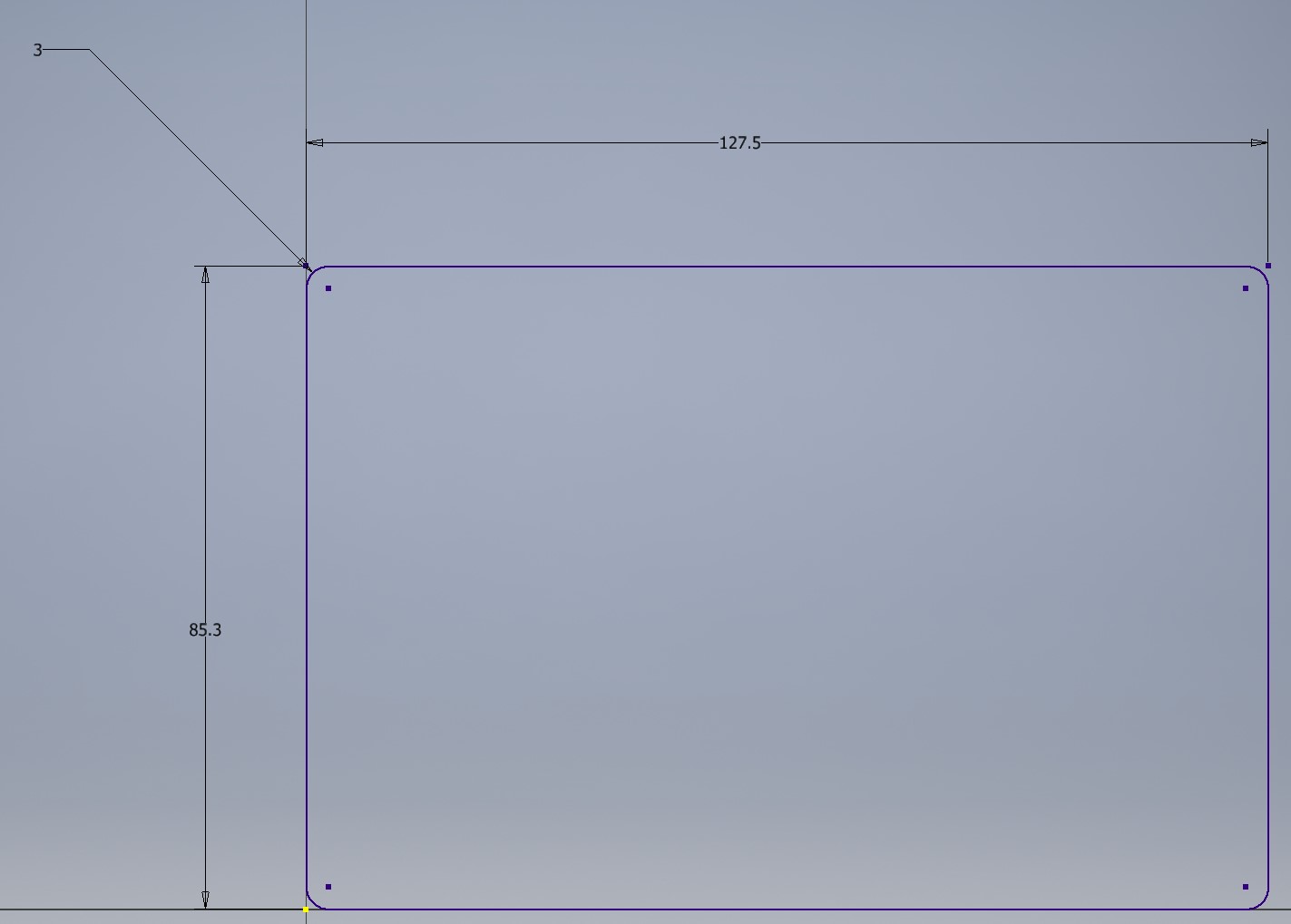

Dimensions: Maximum Dimensions of a sample holder: X=127.5mm; Y=85.3mm, Z=21 mm, tolerance +/-0.1; Fillet of edges with 3mm radius are recommended for easier handling

Maximum dimensions of the sample holder inset.

Suggestion: Consider a frame (width >1mm, Z=21mm) on the sides which keeps the plate in place on the XY frame. Top view sample holder including frame (1mm)

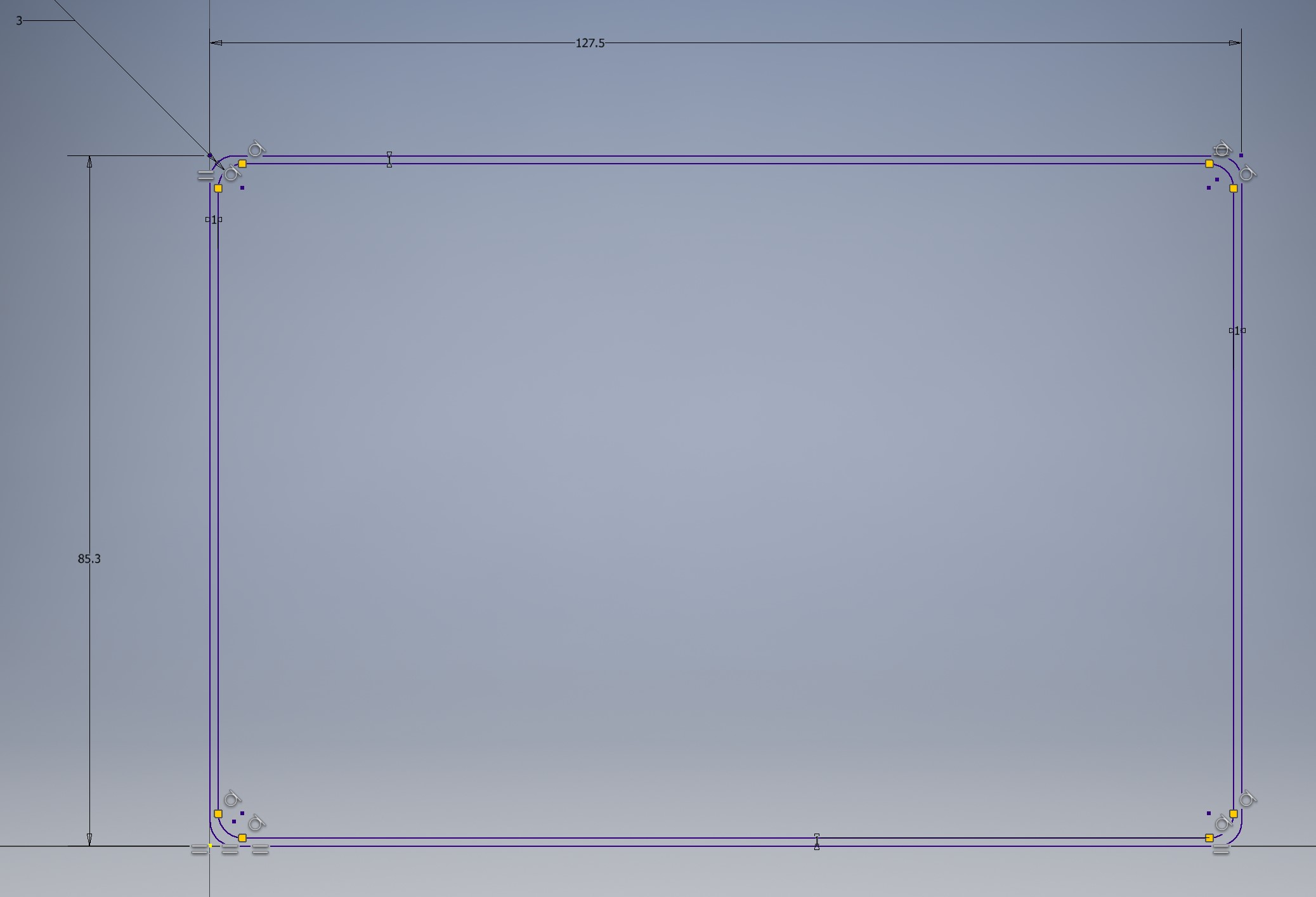

Top view sample holder with frame (width=1mm)

Space accessible by FluidFM Omnium In principle the XYZ stage can access every spot on the XY frame. There are some restriction though, due to the dimensions of the FluidFM Omnium consumable. Please add the following safety distance from the frame to your place of interest to enable the access of the consumable. Sides:3.9mm Top:8.8mm Bottom:5.7mm

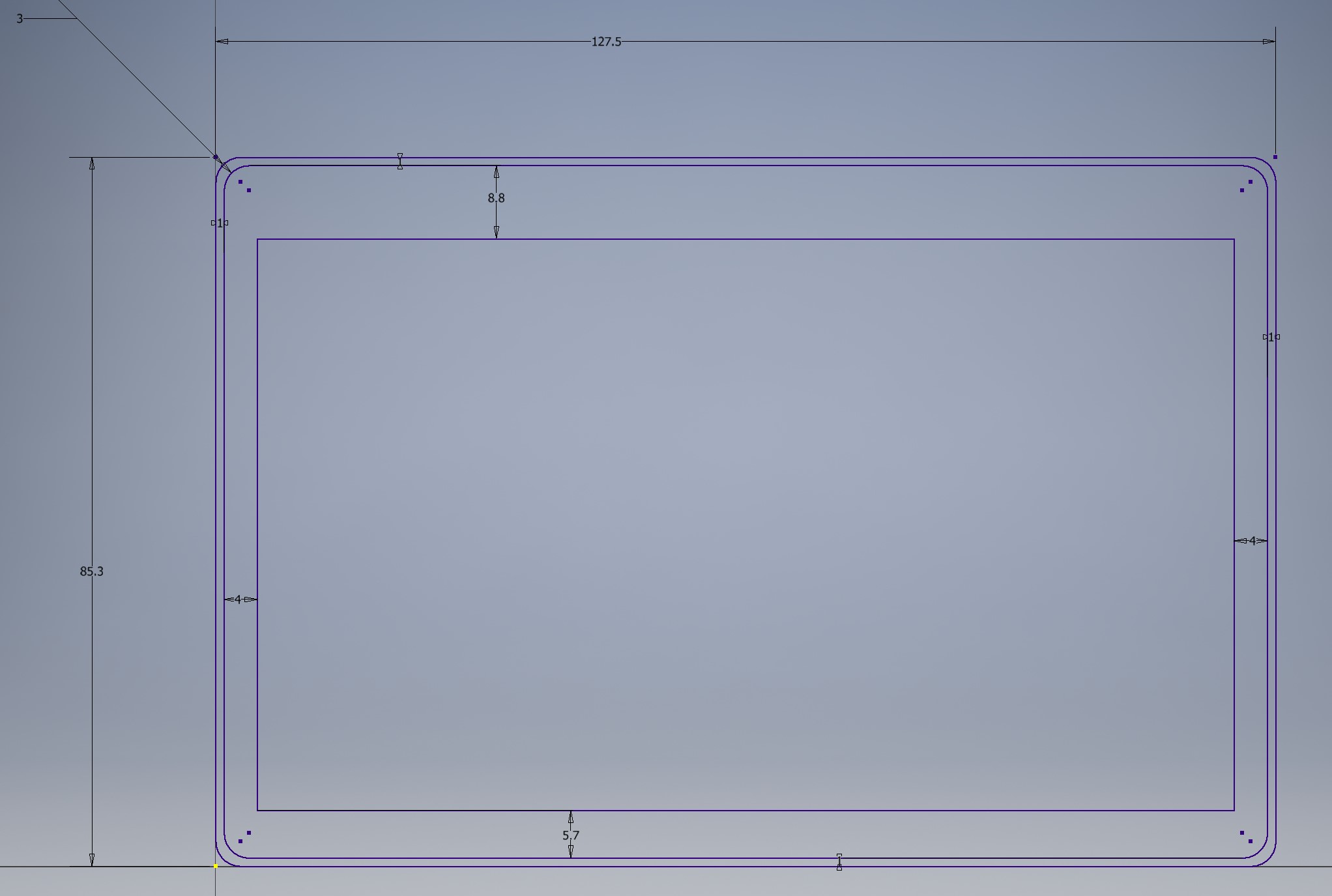

Top view sample holder with frame (width=1mm) and accessible space for consumable

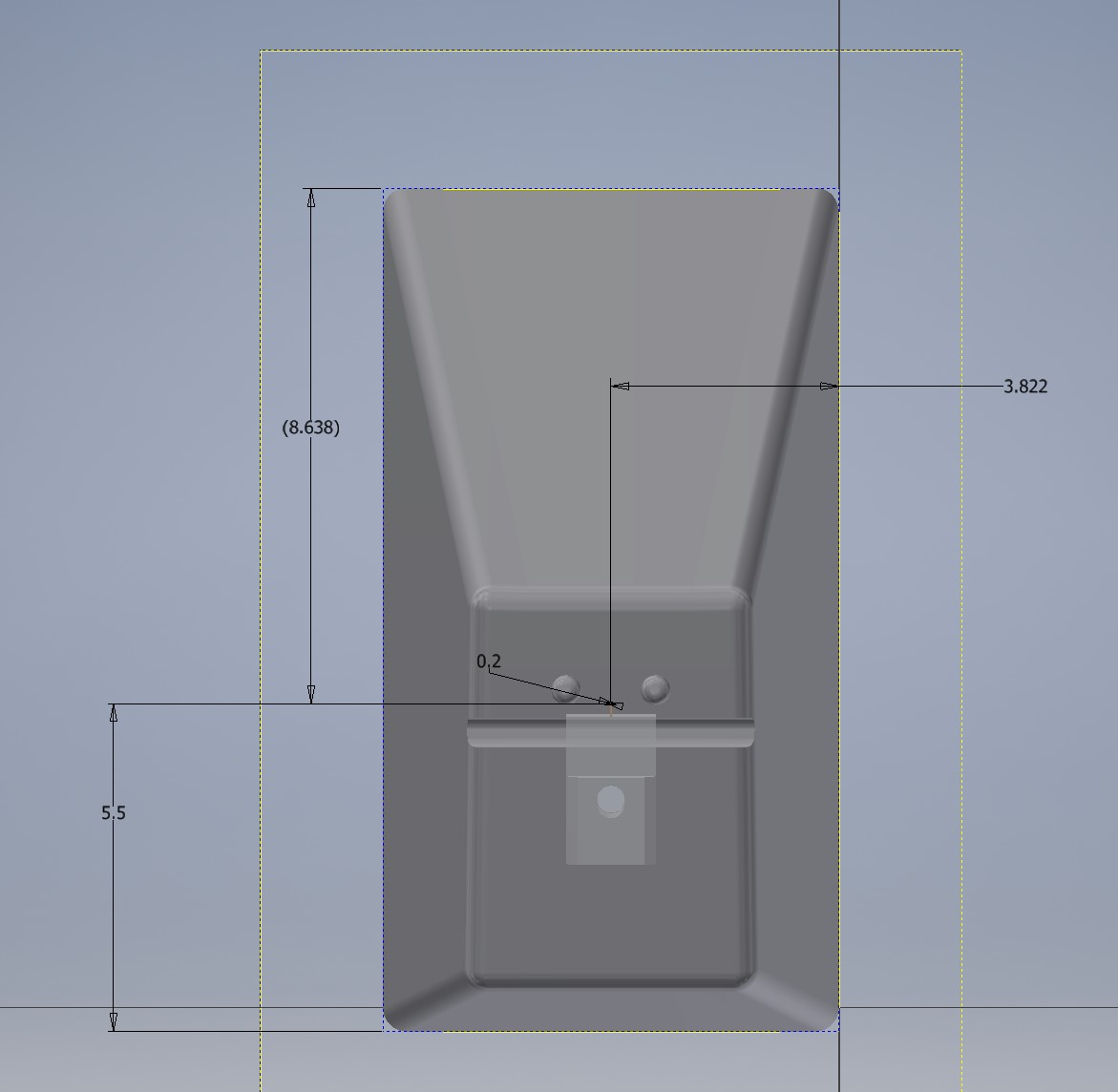

Bottom view of consumable including cantilever

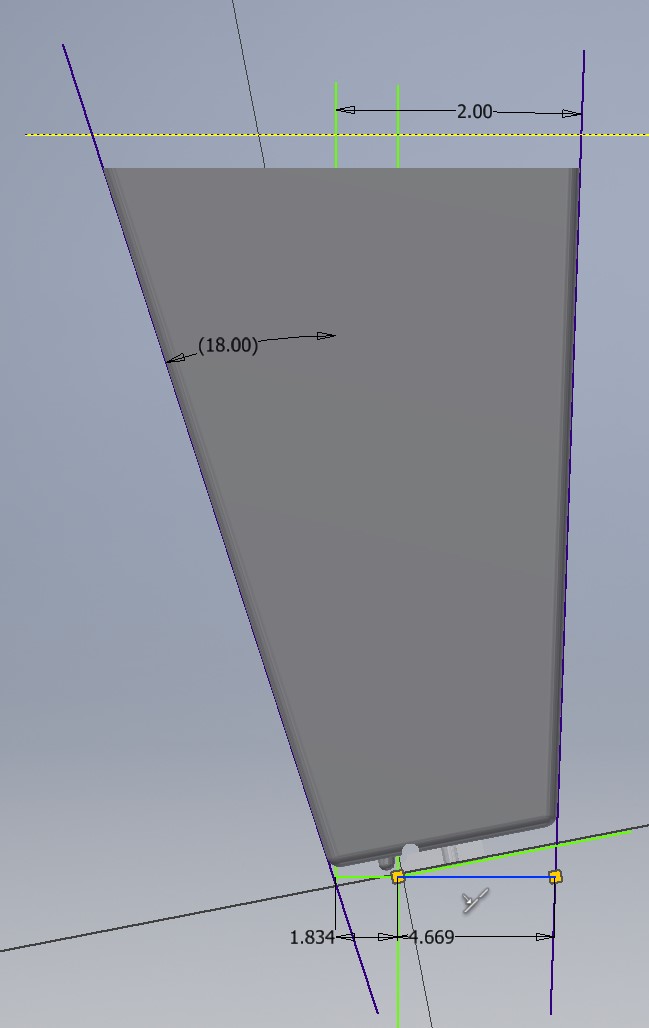

Side view of consumble incl. tip geometry.

Sample surface position in z The minimum position of the sample surface would be z=0mm whereas 0mm is defined as the level of the plate support surfaces on the FluidFM Omnium XY table. The maximum can be 21mm. If optical access is need then the maximum depends on the working distance of used objectives. Suggestion: For most Zeiss and Olympus objectives <3.4mm, check with your highest magnification objective used for the particular plate design. This way you have enough margin and you can also focus on the cantilever 1mm above the sample top surface when not yet in contact.

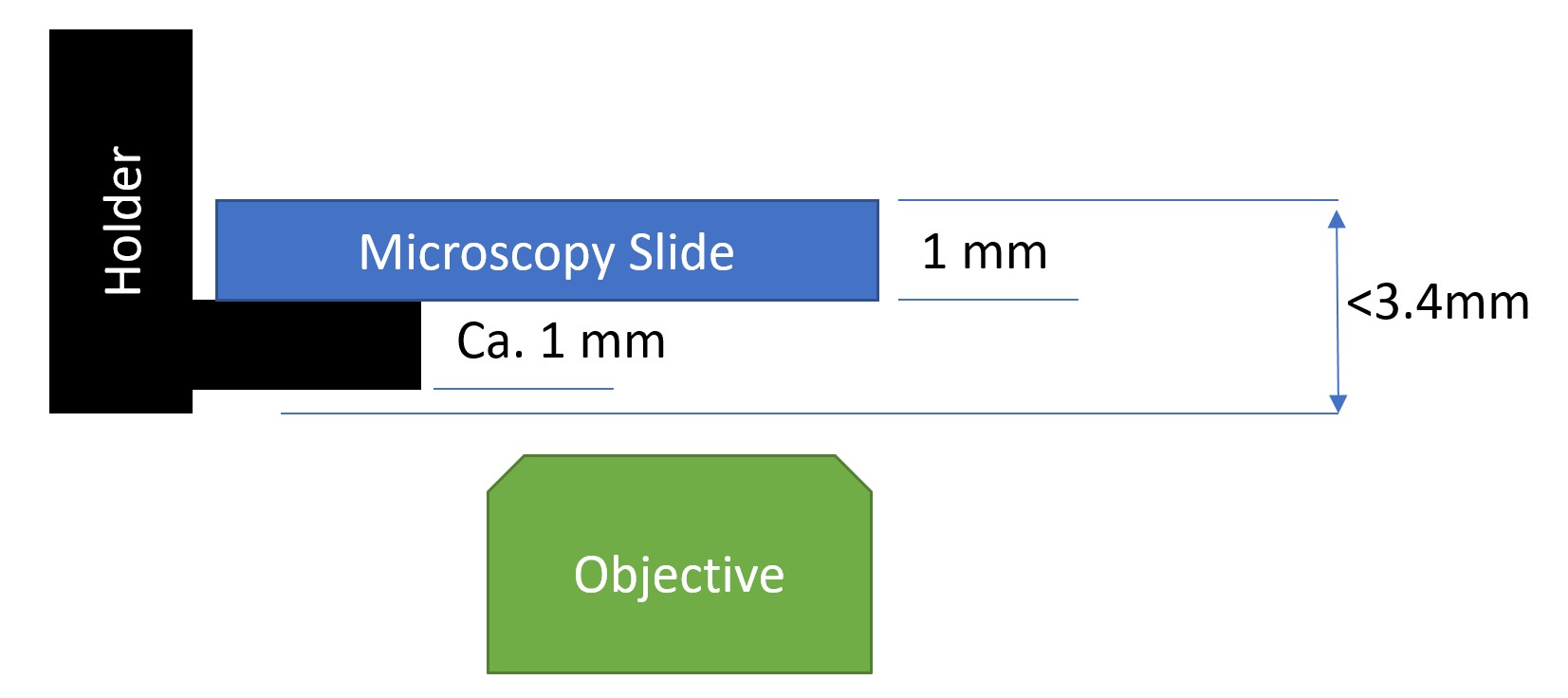

Example Microscopy slide with 1mm thickness (just partial schematics):

Hints: Sample should be clamped for high sensitivity measurements

Encoding: not yet supported for plates made and designed by costumers

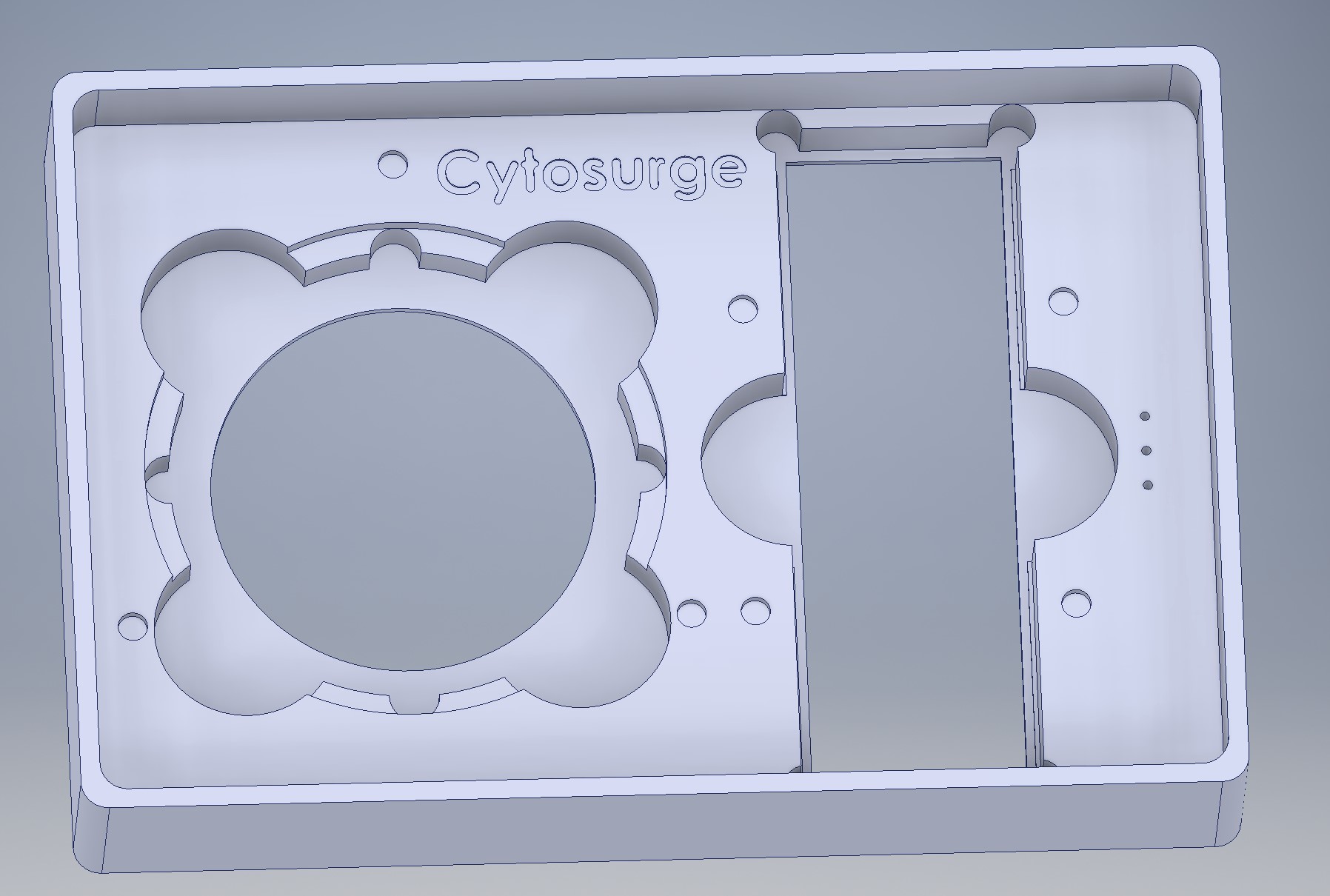

Example from Cytosurge:

Download here: Wilco Well and Microscopy slide
